Platform Series

SALIENT FEATURES

  • 1,00,000 internal resolution
  • Compact Electronics Software
  • Calibration Bright Red L.E.D .
  • Display Auto Zero Tracking
  • Memory Accumulation lots
  • Counting Auto Off Built In Battery Backup

Optional

  • Remote Display/Kg-liter Conversion Rs-232 C or Printer Interface.
  • As Models are rugged Electronic Weighing Scale Designed Specially For Rough Usage in industries and Retail counters.

TECHNICAL SPECIFICATION

  • Microprocessor Based Technology
  • High Speed Star-Delta ADC
  • Power Supply : 230 VAC + 10%
  • Power Consumption : -10W Approximately
  • Operating Temperature range : 0 deg to 50 deg C
  • 150% Overload Capacity

Crane Scale

Model No.CapacityAccuracyClass Of Accuracy
TWSP60Kg20gIII
TWSP150Kg20gIII
TWSP5Tonne1KgIII
 20tonne5KgIII

Beanch Series

Model No.CapacityGraduationClass Of AccuracyPlatter Size (S.S)
TWSP20Kg2gIII400 x 400mm
TWSP30Kg5gIII400 x 400mm
TWSP50Kg5gIII400 x 400mm

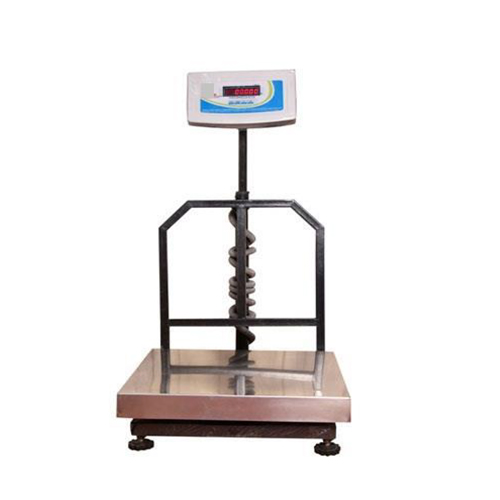

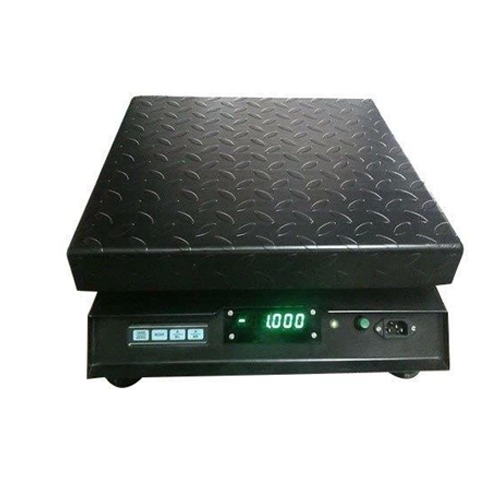

Platform Series

Model No.CapacityGraduationClass Of AccuracyPlatter Size (S.S)
TWSP50Kg5gIII500 x 500mm
TWSP50/100Kg5/10gIII500 x 500mm
TWSP100/200Kg10/20gIII500 x 500mm
TWSP50Kg5gIII600 x 600mm
TWSP100Kg10gIII600 x 600mm
TWSP200Kg20gIII600 x 600mm
TWSP300Kg50gIII600 x 600mm
TWSP500Kg50gIII600 x 600mm
TWSP500Kg50gIII750 x 750mm
TWSP1000Kg100gIII900 x 900mm
TWSP1000Kg100gIII1000 x 1000mm
TWSP2000Kg200gIII1200 x 1200mm

Our Other Models

Custom Built Four load cell based heavy duty scales
Fully Electronic weighbridge (Capacity 5 MT to 200 MT)
Weighing Conversion Kits
Process Automation System (Customized)
